Micro-DTMF Touch Tone Receiver/Decoder
The Micro-DTMF Receiver/Decoder is an integrated programmable VHF receiver and DTMF touch tone decoder
designed for remote control applications. The receiver may be set to any 2 meter
amateur radio frequency (in 5 KHZ channel steps) via a terminal program and
a 3/32" (2.5mm) three conductor plug programming cable.
The decoder will decode all standard DTMF touchtones, and set the corresponding output
high momentarily during detection of the tone. The Micro-DTMF operates on 7-15V and draws about 30 mA.
Micro-DTMF - $160

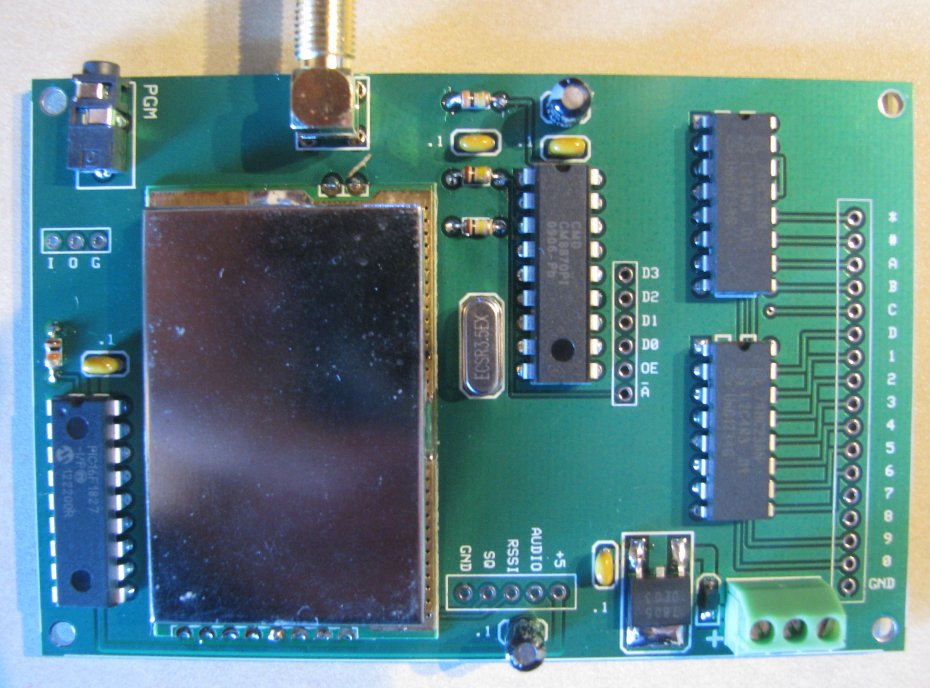

Includes built and tested circuit board, but no antenna or programming cable.
MT-AIO Programming Cable - $15
This programming cable (also used for the MT-AIO) will connect a Micro-DTMF to a computer serial port or USB-to-serial adapter for configuring. Cable is wired DB-9 female pin 5 to 3/32" stereo shield, pin 3 to ring, and pin 2 to tip. Documentation:
|
