Micro-Trak 400

The Micro-Trak 400 is a frequency agile 2-meter transmitter combined with a TinyTrak3 controller chip that provides an easy and inexpensive way to build a small APRS tracker.

Just plug in a GPS receiver, such as the Byonics GPS2, add a SMA antenna, and start tracking!

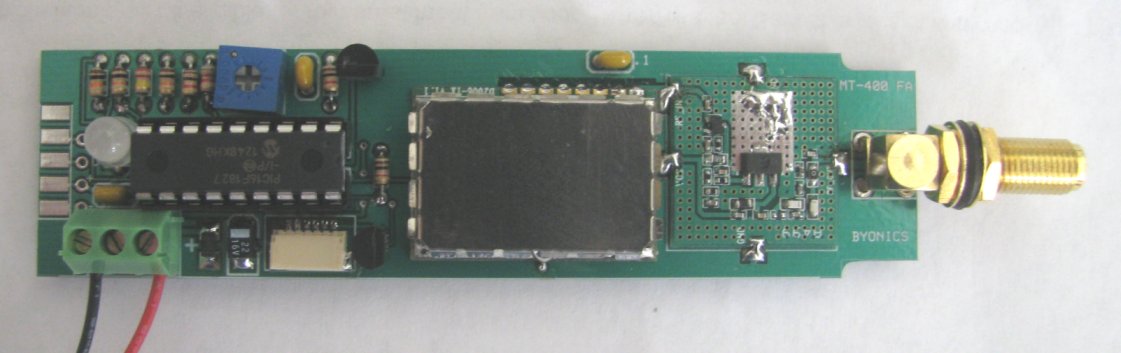

The Micro-Trak 400 can be user configured to transmit on any amateur 2-meter frequency, transmits 400 mW and is sold as a built and tested unit. The PCB measures 1 inch X 4 inches.
  • No need to tie up an expensive radio for APRS tracking
  • No complicated radio cabling
  • Simple 2 wire GPS connection
  • Supports all the latest Byonics TinyTrak3 features.

Ordering:

Out Of Stock
Documentation:
Notes:
  • The Micro-Trak 400 operates on amateur radio frequencies, and requires a valid amateur radio license to use.
  • The Micro-Trak 400 is a transmitter only, and may occasionally send very short packets coincidentally with other transmitters.
