Micro-Trak VHF Antennas These SMA antennas are all compatible with all the Micro-Trak transmitters.
Rubber Duck AntennasThese factory made antennas will work with all Micro-Trak transmitters, as well as any handheld radio with an SMA antenna jack. The V2 is longer with a sturdy whip, while the V4 is more compact and flexible.

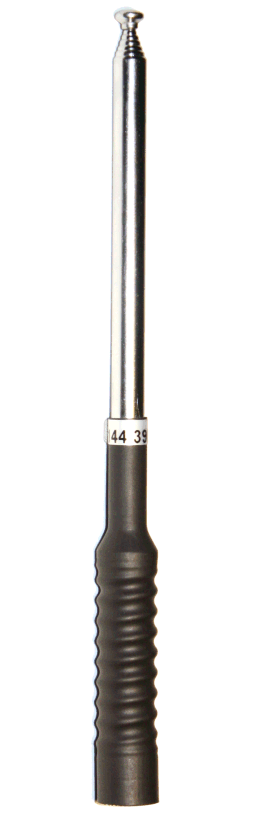

Micro-Trak VHF Antenna V7The Micro-Trak VHF Antenna V7 is a telescoping half-wave antenna with an SMA connector. It has been tuned for 144.39 MHz, but should work well over the entire 2-meter band. The bottom is a flexible spring to reduce torque on the radio SMA connector. The extened length is 24 inches and the collapsed length is 6.5 inches. Gain is 3 dB.
Micro-Trak VHF Antenna V7 - $20.
Micro-Trak VHF Antenna V10The Micro-Trak VHF Antenna V10 is a short stubby antenna with an SMA connector. It has 0 db gain and should work over the entire 2-meter band. We recommend this for our MF-15 if you are looking for a more compact hidden transmitter or want to lower effective radiated power to make it easier for close range hunting. 4.5cm long.
Micro-Trak VHF Antenna V10 - $19.

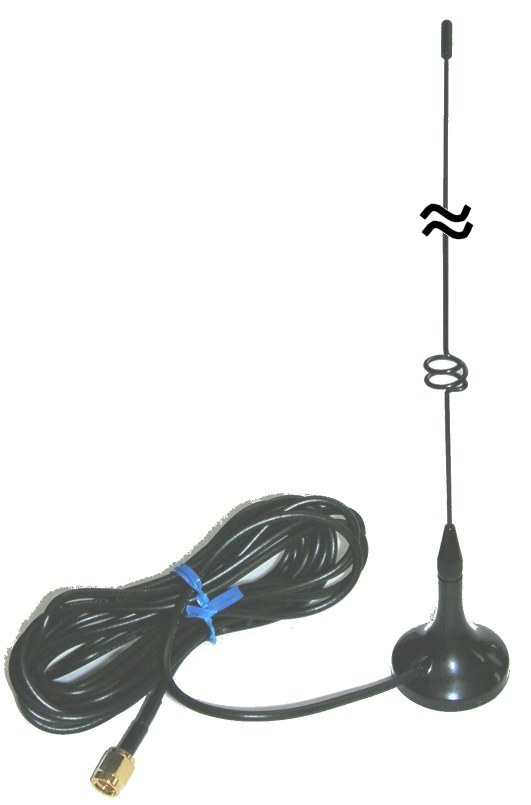

Micro-Trak VHF Antenna V3The Micro-Trak VHF Antenna V3 is a factory made external VHF antenna with a "Hershey-Kiss" magnet mount base for use with many hand held radios, and the Micro-Trak APRS transmitters. This antenna whip is very flexible. If using a Micro-Trak in a vehicle, an external antenna, such as this one, is highly recommened. Specifications Frequency: 144-148 MHZ Gain: 3.0dB Length: 20 inches Weight: 2.7 ounce Connector: SMA Male Cable: RG-174 10 feet Magnet Diameter: 1.25 inches
Micro-Trak VHF Antenna V3 - $19.
Large Mag-Mount V9 Antenna This factory made antennas will work with all Micro-Trak transmitters, as well as any handheld radio with an SMA antenna jack. They have the larger RG-58 Coax, so they are useable with the MT-RTG 50.

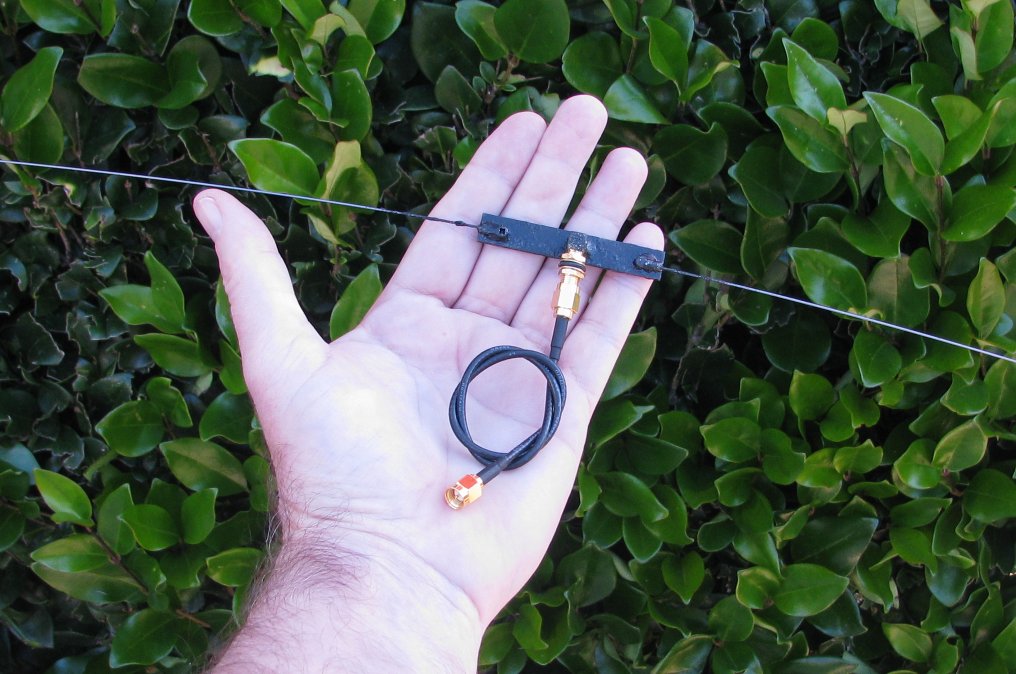

Micro-Trak VHF Antenna V6The Micro-Trak VHF Antenna V6 is center fed 2-meter dipole antenna that comes with a 12" SMA coax. The overall length is 37 in and the elements are flexible spring-steel 0.032 music wire. Antenna weight without coax is 0.4 oz. The wire ends are rolled into a loop for safety. It provides a considerable signal boost over the rubber duck alternatives, and was primarily deisgned for high altitude balloons.
Micro-Trak VHF Antenna V6 - $40.
|
